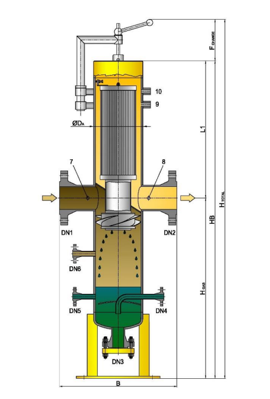

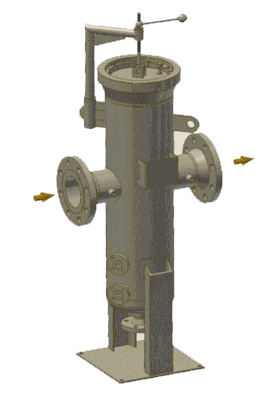

HFAZ (PN 16/40)/80/100
- Suitable for up to 30% H2 feed into the gas network
- The compact design allows inline execution
- A central cyclone ensures pre-separation of larger impurities
- A central cyclone ensures pre-separation of larger impurities
- A central cyclone ensures pre-separation of larger impurities
- Differential pressure measurement of the filter cartridge possible without additional installations
- Sheath diameter from DN 200, standard equipment with the HEAT energy quick-release fastener
- Swivel arm as standard with the quick-release fasteners and larger container lid
- Special version also available for higher pressures and temperatures

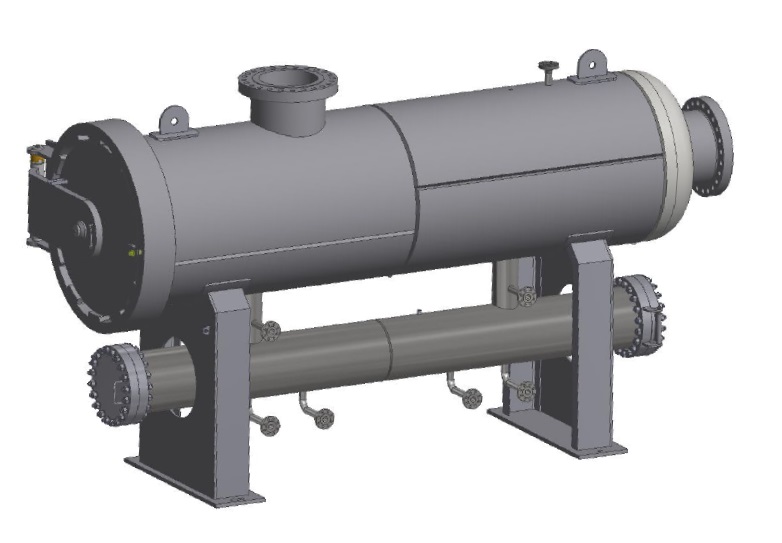

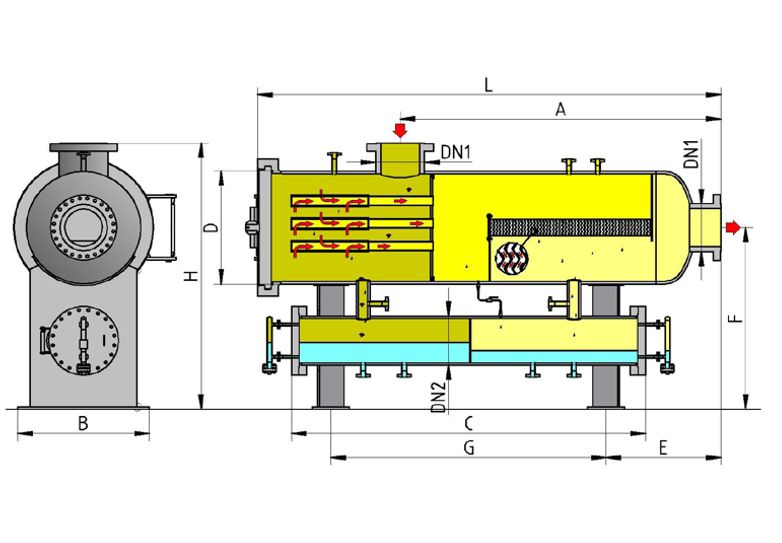

HFAH, (Pn100)
- Suitable for up to 30% H2 feed into the gas network
- Management of large gas flows with high levels of solid and liquid contamination
- Gas pre-cleaning via baffle tubes (of the filter attachment)
- Stable coalescer cartridges for the retention of solid and liquid particles
- Downstream, carefully designed vane package for efficient liquid separation
- Customised design with free orientation of the inlet nozzle
- Low flow rates for excellent separation
- Sheath diameter from DN 300, standard equipment with the HEAT energy quick-release fastener
- Easy manual cleaning thanks to cover with swivel arms on the sump tank
